The XS4 Euro lock is a mortice lock with latch projection which means the latch is automatically projected and deadlocked when the door is closed. This mortice lock is suitable for all kinds of wooden door whether it’s a hotel room, office or warehouse door etc. The new latch projection function increases security by making it impossible to gain access by using plastic cards. For additional security, this lock comes with a double throw deadbolt and electronic privacy switch.

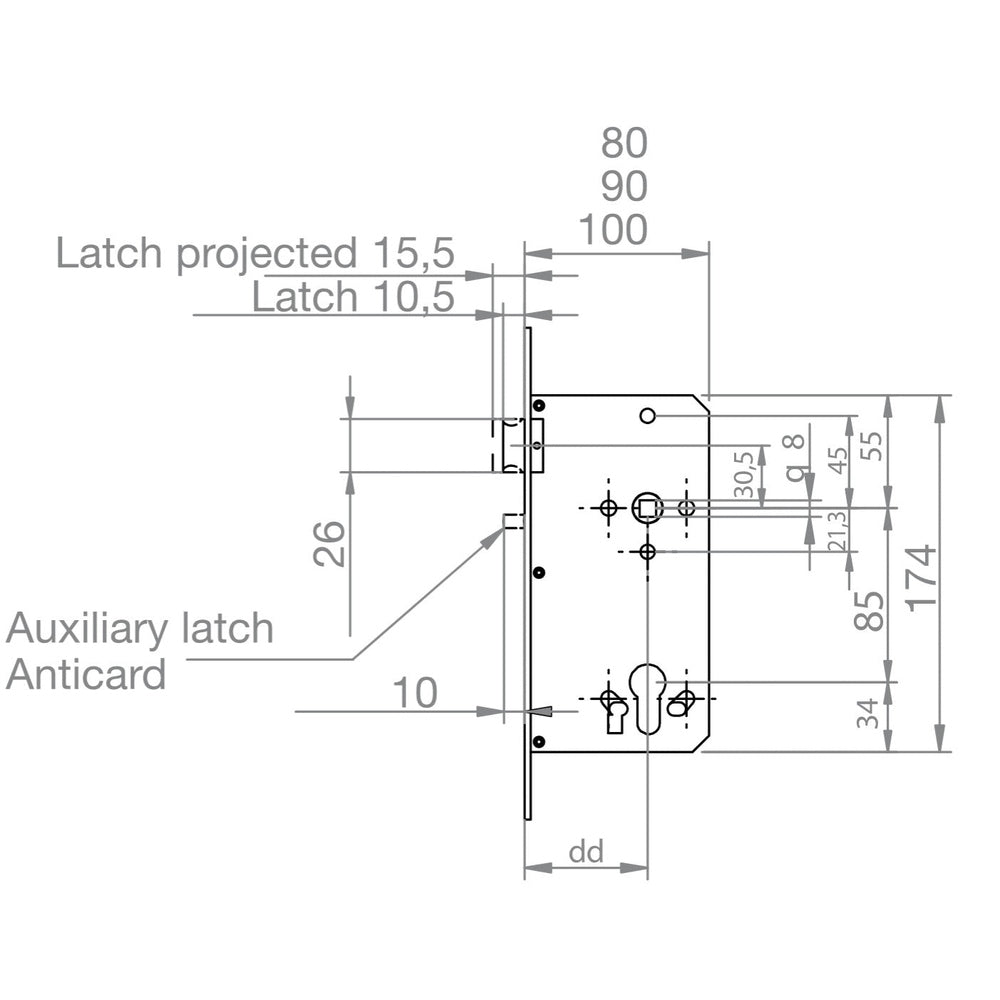

60mm backset, 85mm centres, 23mm square forend
Note: Striking plate is sold separately - Ref: CE8P1CS30IM
